Film Washing Line | PP PE Film Washing Line & Plastic recycling machines

Alternative Names:

Plastic Film Recycling Washing Line,PP PE Film Crushing Washing & Dewatering Line,Agricultural Mulch Film Cleaning Line,Waste Stretch Film Washing System,Post-consumer Film Reprocessing Washing Plant,Plastic Film Flake Washing Production Line,Used Packaging Film Recycling Cleaning Equipment,Plastic Film Sorting Washing Drying Line

Output Capacity Range:500kg/h,1000kg/h,1500kg/h

Voltage:380V/400V/415V/220V

Applicable materials: PP/PE agricultural mulch film, greenhouse film, stretch wrap film, express delivery bags, shopping bags, printed packaging film, and woven bag film edge trimmings.

Controller:SIEMENS PLC Touch Screen Controller

Motor Brand:SIEMENS/ABB

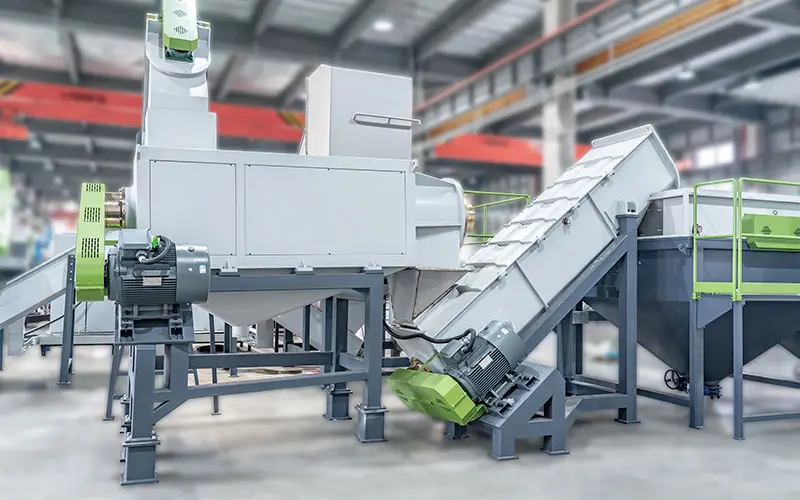

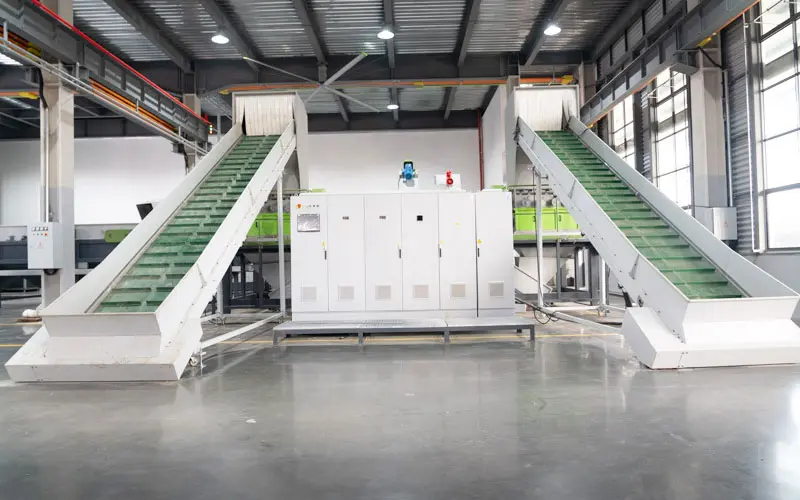

PP PE Film Washing Line for Waste Agricultural & Packaging Film Recycling Cleaning

This complete PP PE film washing line is integrated automatic cleaning equipment dedicated to post-consumer soft plastic recovery, also widely known as mature waste film recycling washing line in plastic recycling industry. Targeting the characteristics of waste film such as light weight, easy winding, heavy mud and residual adhesive contamination, this whole set cleaning system completes crushing, friction washing, sink-float separation, hot washing, rinsing and dewatering continuously, turning dirty waste film into clean dry flakes ready for subsequent extrusion granulation.

As standard plastic recycling washing line, it is highly compatible with multiple soft plastic raw materials: agricultural mulch film, greenhouse film, packaging stretch film, shopping bag scraps, woven bag leftovers and printed plastic packaging film. According to different pollution levels of raw materials, we configure basic cold washing structure or high-temperature hot washing formula to remove soil, pesticide residue, printing ink and sticker glue thoroughly, effectively improving cleanliness and added value of finished plastic flakes.

The whole production line adopts modular design, each unit can be matched and combined flexibly. Pre-crusher cuts large film rolls into small fragments for smooth conveying; high-speed friction washer strips surface dirt via strong material rubbing; sink-float tank separates PP/PE from heavier impurity plastics and sand stones; final centrifugal dewatering machine controls moisture content of finished flakes below 5%, greatly reducing energy consumption for follow-up drying and granulation process.

We customize hourly processing capacity from 500kg/h to 1500kg/h to satisfy small recycling workshops and large-scale centralized plastic recycling factories. With wear-resistant blade structure, anti-winding feeding design and easy maintenance layout, this recycling cleaning system can run stably for long-term continuous production. Clean film flakes processed by this system can be directly fed into single screw or twin screw granulator to produce qualified recycled plastic pellets, realizing closed-loop resource utilization of waste plastic film.

Plastic Film Recycling Washing Line Working Flow

No.	Equipment Name	No.	Equipment Name	No.	Equipment Name
1	Belt conveyor	8	High pressure washing tank	15	Screw loader
2	Pre-shredder	9	Pre-washer	16	Dewatering machine
3	Belt conveyor	10	Belt conveyor	17	Floating washer B
4	Pre-washer	11	Crusher	18	Dual discharge screw loader
5	Screw loader	12	Pre-washer	19	Screw loader
6	Pre-washer	13	High speed friction washer	20	Squeezer
7	Screw loader	14	Floating washer A	21	Buffer tank

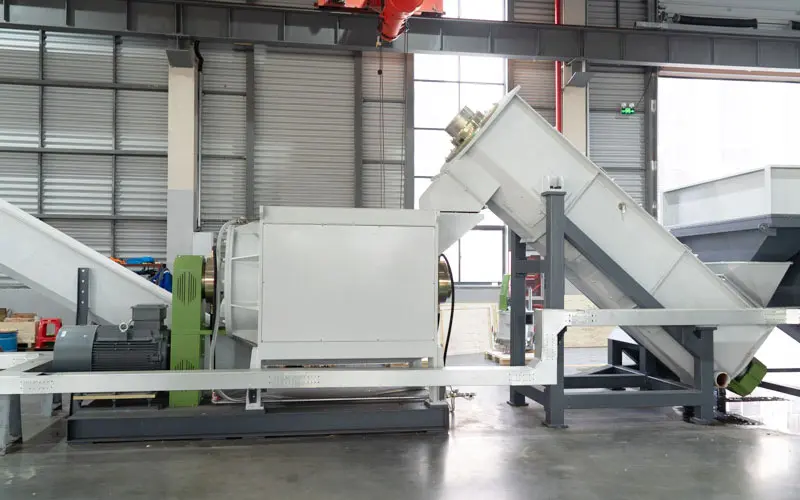

centrifugal-dewatering-machine-for-plastic-recycling-line

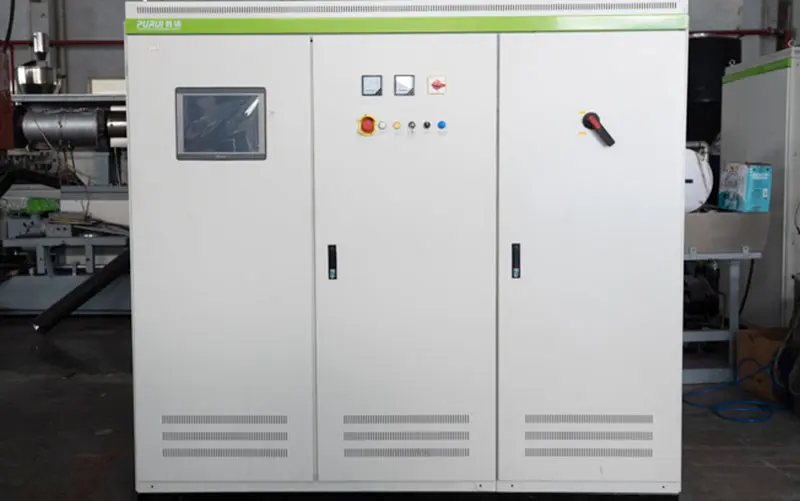

electric-control-cabinet-for-plastic-recycling-machines

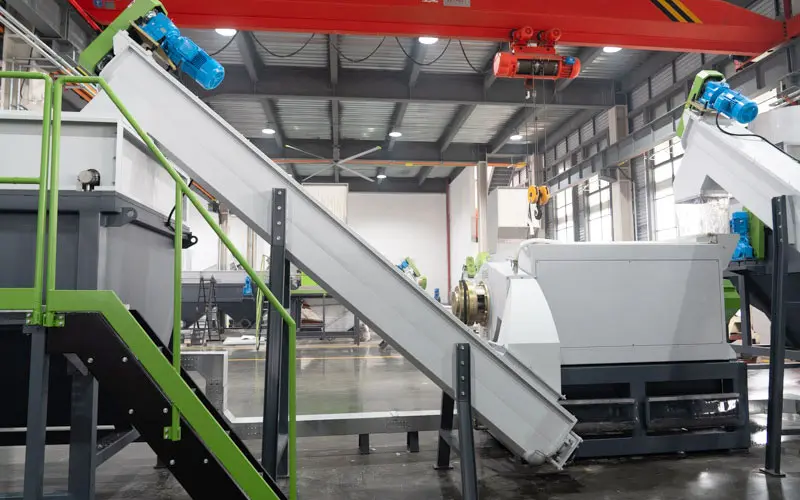

floating-washer-for-plastic-washing-line

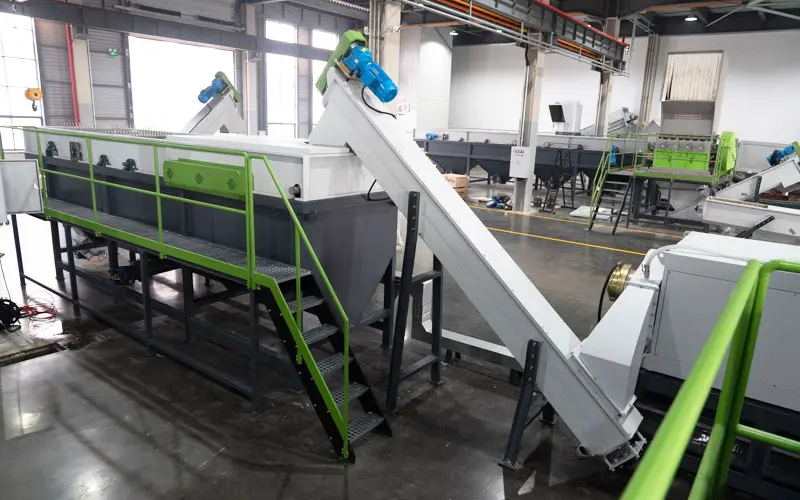

floating-washer-for-waste-film-recycling-line

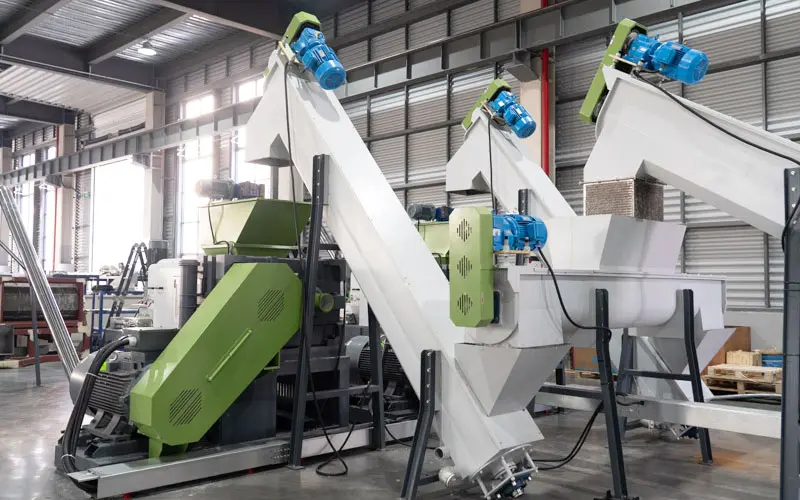

plastic-squeezer-in-plastic-washing-line

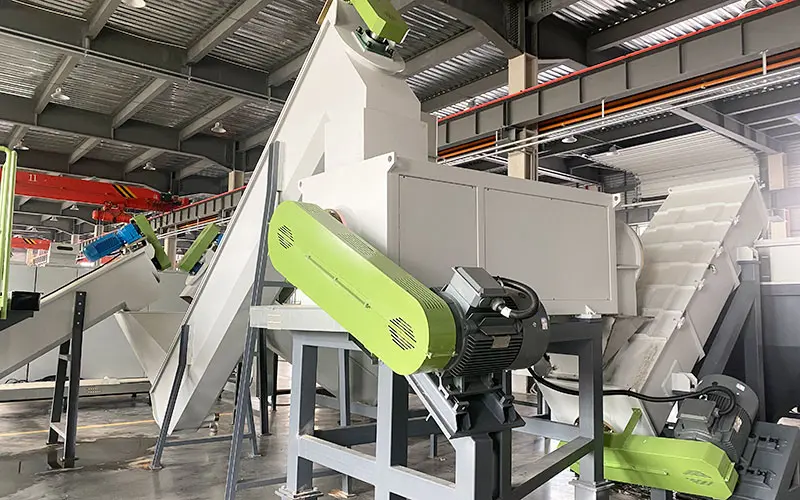

plastic-washng-machine-high-speed-friction-washer

FAQ – Frequently Asked Questions for Plastic Film Flake Washing Production Line

Q1: What kinds of waste plastic can this PP PE film washing line handle?

A: This equipment, taking positioning as core film washing line and complete waste film recycling washing line, mainly processes PP PE agricultural mulch film, greenhouse film, stretch wrapping film, waste shopping bags, printed packaging film and woven bag trimmings. As general-purpose plastic recycling washing line, it removes dirt, glue and impurities to produce clean dry film flakes for further regranulation.

Q2: Can we customize the configuration of this washing line according to raw material pollution degree?

A: Yes, we offer fully customized scheme for our standard film washing line, also called mature waste film recycling washing line and practical PP PE film washing line. For slightly contaminated film, we configure basic cold washing process; for heavily muddy, glue-covered or printed film, we add hot washing tank, friction washing unit and label removal structure, adjusting total length, motor power and equipment layout to match your raw material condition, site space and investment budget to build targeted plastic recycling washing line solution.

Q3: Why is sink-float separation necessary inside the plastic recycling washing line?

A: Different plastics have different density. Sink-float tank uses water buoyancy to separate PP/PE floating film from sinking impurities such as PET, PVC, sand, stones and heavy plastic fragments, avoiding mixed impurity entering finished flakes and affecting quality of recycled pellets in subsequent granulation procedure.

Q4: Is hot washing always required for all waste film recycling projects?

A: Hot washing is optional. If your waste film only has simple surface soil, cold washing process can meet cleaning demand with lower investment and energy cost. If film carries heavy sticker residue, printing ink or agricultural pesticide dirt, hot washing with alkaline detergent is necessary to achieve high-clean finished flakes, suitable for high-end recycled pellet production.

Q5: What full after-sales support will you provide after order confirmation?

A: The entire washing production line enjoys 12-month warranty excluding vulnerable wearing spare parts. We supply lifelong discounted spare parts supply, overseas engineer on-site installation, commissioning and worker operation training, as well as remote online fault troubleshooting, ensuring long-term stable and continuous operation of your whole film recycling cleaning project.
