BOPET Film Pelletizing Machine | BOPET Film Granulating & Recycling Machine

Plastic Pelletizing Machine

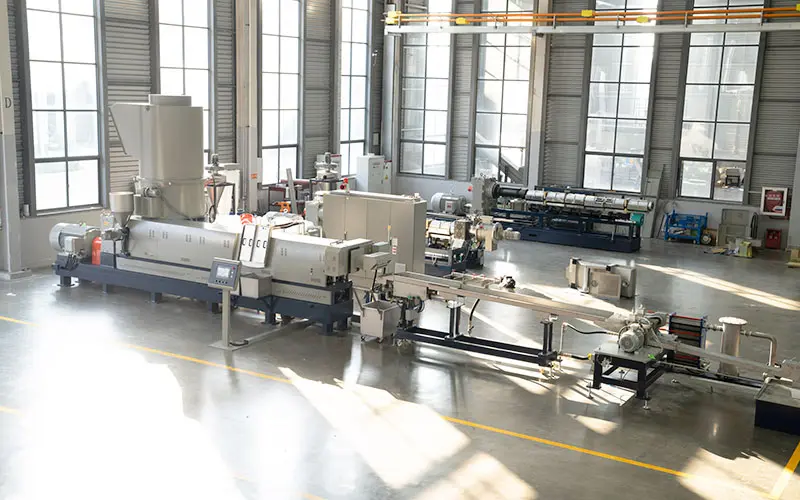

BOPET film pelletizing machine
Alternative Names:

BOPET film pelletizing machine, BOPET film granulating machine, BOPET film recycling machine for waste BOPET film extrusion pelletizing recycling

Output Capacity Range:100-2000kg/h

Voltage:380V/400V/415V/220V

Screw Type:Single Screw Extruder

Controller:SIEMENS PLC Touch Screen Controller

Motor Brand:SIEMENS/ABB

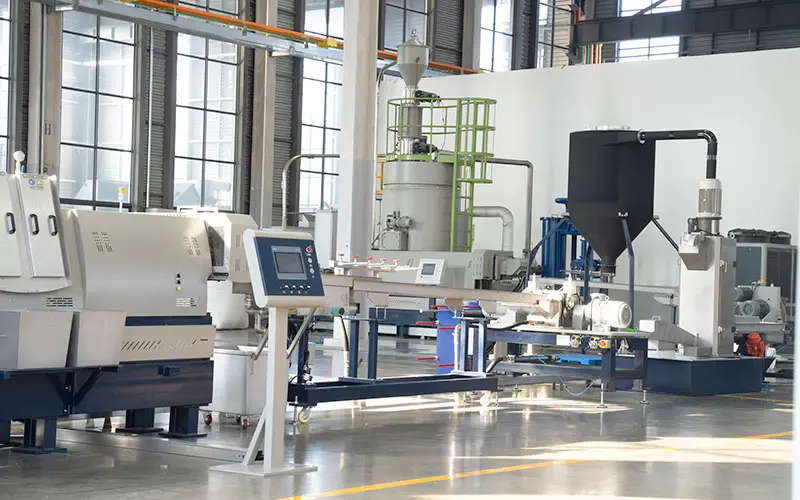

Plastic Pelletizer Type:Under-water pelletizer,strand pulls cutting system

BOPET Film Pelletizing Machine – Specialized BOPET Film Granulating Machine for Industrial BOPET Film Recycling

Our BOPET film pelletizing machine is custom-engineered as professional BOPET film granulating machine and integrated complete BOPET film recycling machine, specially designed to overcome the inherent processing difficulties of BOPET polyester film, such as high melting point, easy moisture absorption, thermal hydrolysis, high rigidity and poor plasticization, which ordinary PE/PP film pelletizing extruders cannot handle stably and continuously. Through targeted screw design, precise temperature control and multi-stage vacuum devolatilization system, our equipment realizes stable extrusion, impurity removal and uniform pelletizing for various waste BOPET leftover materials, maintaining intrinsic viscosity and quality of recycled PET pellets for high-value downstream reuse.

Full Range of Processable BOPET Waste Materials

This dedicated BOPET film recycling machine is perfectly matched for all mainstream industrial BOPET waste resources:
  1. Edge trimmings, winding leftover rolls and off-spec film scraps generated during BOPET film production;
  2. Aluminized BOPET film, printed packaging BOPET film, coated functional BOPET film waste with ink and coating residues;
  3. Optical protective BOPET film, solar backsheet base film, insulating electronic BOPET film leftover trimmings;
  4. Thick rigid BOPET sheet trimming waste, multi-layer composite laminated BOPET film scraps.Since BOPET absorbs moisture easily and tends to molecular degradation and yellowing at improper temperature, our exclusive BOPET film pelletizing machine avoids viscosity reduction and material deterioration throughout the whole recycling extrusion process.

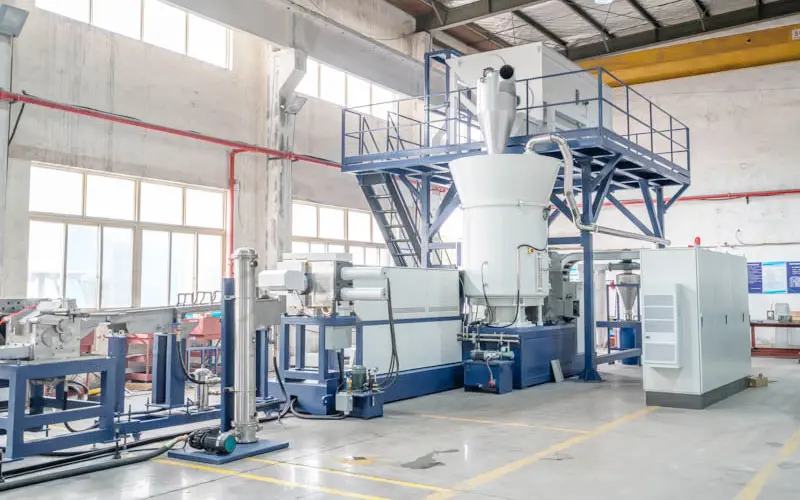

pet-film-recycling-plastic-granulator

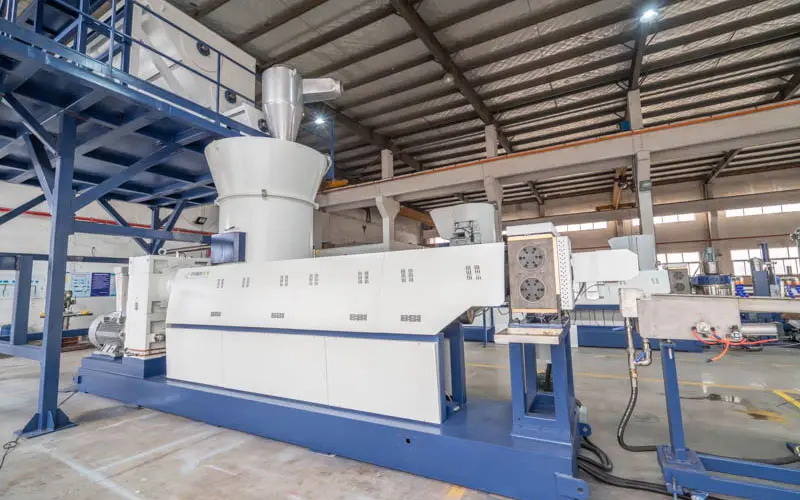

pet-film-flakes-pelletizing-machine


Core Technical Advantages of Our BOPET Film Granulating Machine

First, we adopt PET-special high compression ratio screw and nitrided barrel, matched with segmented independent precise temperature control, accurately stabilizing melting window to guarantee full plasticization without thermal decomposition of rigid BOPET fragments.
Second, multi-group high vacuum exhaust structure effectively removes adsorbed water, residual solvent, volatile ink gas and small molecule impurities, solving hydrolysis defects that severely reduce recycled pellet grade.
Third, forced anti-bridging feeding mechanism solves slipping, floating and uneven feeding problems of thin, lightweight BOPET film scraps, supporting long-term non-stop continuous production.
Fourth, wear-resistant alloy screw elements greatly extend service life, cutting frequent replacement cost of vulnerable parts for long-run recycling production.
We provide turnkey full-line solution including shredder, washing tank, high-speed dewatering unit matched with our core BOPET film pelletizing machine. Our engineering team adjusts screw combination, exhaust layout and cutting mode (strand cutting, water-ring cutting) according to your BOPET contamination level, film thickness and hourly output target. For film manufacturers and professional PET recycling enterprises, investing in our dedicated BOPET granulating equipment improves recycled pellet quality and economic profit, meeting strict index requirements of downstream fiber, bottle grade and modified PET production. We offer pre-sales layout design, overseas installation & commissioning, operator technical training and lifelong spare parts supply service, acting as reliable long-term partner for industrial BOPET waste recycling projects globally.

BOPET Film Granulating Line Model & Parameter

Model ML75 ML85 ML100 ML130 ML160 ML180
L/D 35:1 33:1 36:1 36:1 33:1 35:1 30:1 33:1
Rotary speed(r/min) 220 220 185 185 150 150 120 120
Capacity(kg/h) 150-200 200-300 400-450 500-650 650-700 800-900 1000 1500

Note: Plastic granulating machines are customized product, any changes in material and motor configuration will affect the output capacity data. Please consult our sales quotation for guidance.

FAQ – Frequently Asked Questions for BOPET Film Pelletizing Machine

Q1: Why can’t ordinary PP/PE pelletizer process BOPET film?

A: BOPET is high-melting-point polyester material, easy to absorb moisture and hydrolyze during heating, prone to molecular chain breaking and yellowing. Our BOPET film recycling pelletizing line adopts PET special screw structure, multi-stage high-vacuum exhaust and precise segmented temperature control, specially solving plasticizing difficulty and hydrolysis risk, which common soft film extruders cannot handle stably.

Q2: What types of BOPET waste can your BOPET film recycling machine handle?

A: Our complete BOPET film recycling line is applicable for BOPET film edge trimmings, leftover film rolls, aluminized BOPET film, printed packaging BOPET, coated functional BOPET, optical protective BOPET film, solar backsheet film scraps, multi-layer composite BOPET film and rigid BOPET sheet trimmings from film factories.

Q3: Can you customize the hourly output of the BOPET film recycling machine?

A: Yes. We customize screw diameter, motor power and overall configuration according to your required production capacity ranging from 100kg/h up to 1500kg/h. Our technical team designs targeted layout and scheme to match your factory site, raw material pollution level and production budget.

Q4: What is the warranty and after-sales service for your BOPET film pelletizer?

A: The whole machine enjoys 12-month warranty excluding vulnerable wearing parts. We supply lifelong preferential spare parts supply, overseas engineer on-site installation, commissioning and operator training service. We also provide long-distance online technical troubleshooting for our BOPET film granulating machine and complete BOPET film recycling line.

Q5: What cutting modes are available for the BOPET film granulation line?

A: We support two mainstream cutting solutions for our BOPET granulating unit: strand pulling cutting and Under-water strand pulling cutting.

HOT SALE PLASTIC RECYCLING MACHINES

PET bottle granulator, PET bottle pelletizer, PET bottle flakes granulator, PET flake pelletizing machine, waste PET bottle recycling granulator for PET bottle flake extrusion pelletizing

Pet bottle granulator machine

PET Bottle Granulator Machine (also called PET bottle crusher/shredder, matched with PET pelletizing extruder to form complete recycling line) is core equipment for waste PET plastic recycling industry. It cuts waste mineral water bottles, beverage bottles, PET containers into uniform PET flakes.Featuring sturdy structure, low noise and overload protection

rigid-plastic-recycling-machine

HDPE rigid plastic granulator

This granulator is dedicated to crushing rigid HDPE waste like plastic bottles, buckets, crates and pipe scraps. With high-strength alloy rotating and fixed blades, it delivers efficient shear cutting to produce uniform HDPE flakes. Equipped with a sizing screen to control particle size, it supports both dry and optional wet cutting to avoid material melting and remove surface dirt.

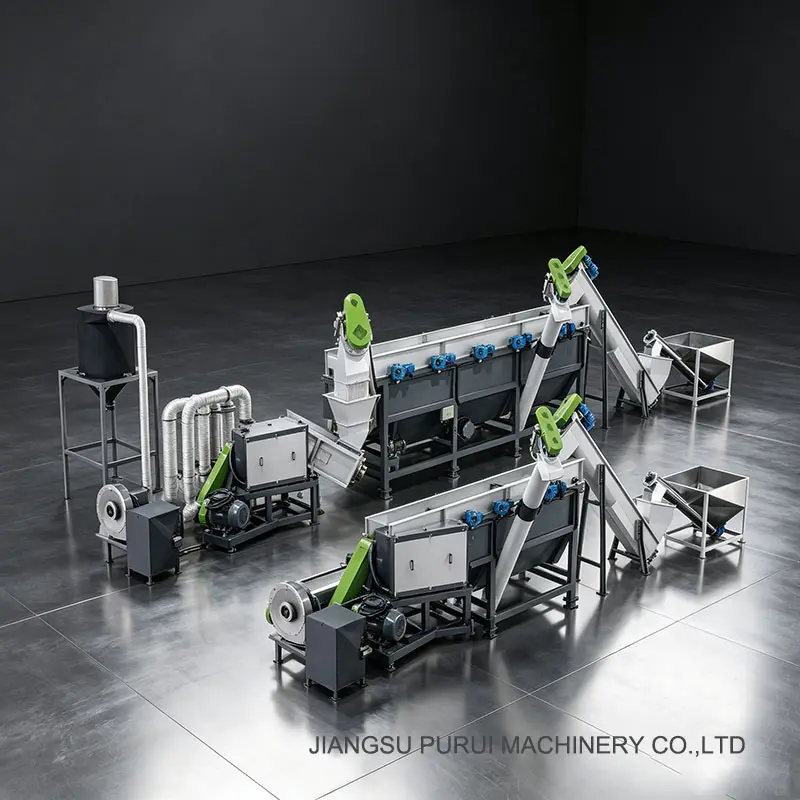

Plastic-recycling-washing-line
